5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

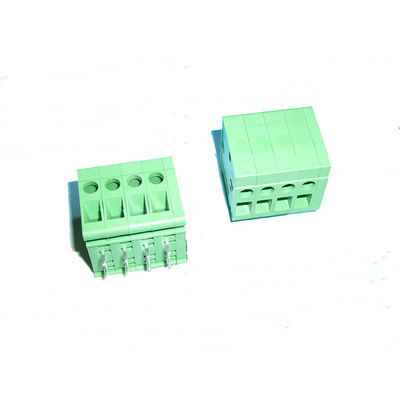

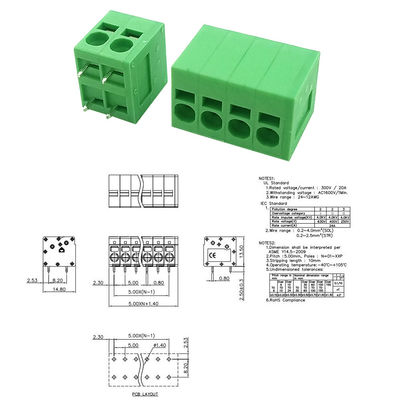

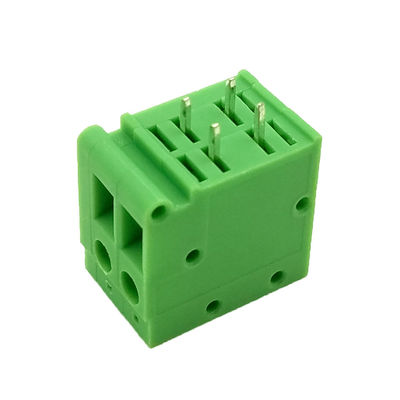

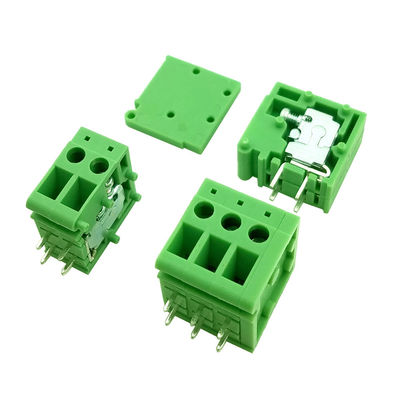

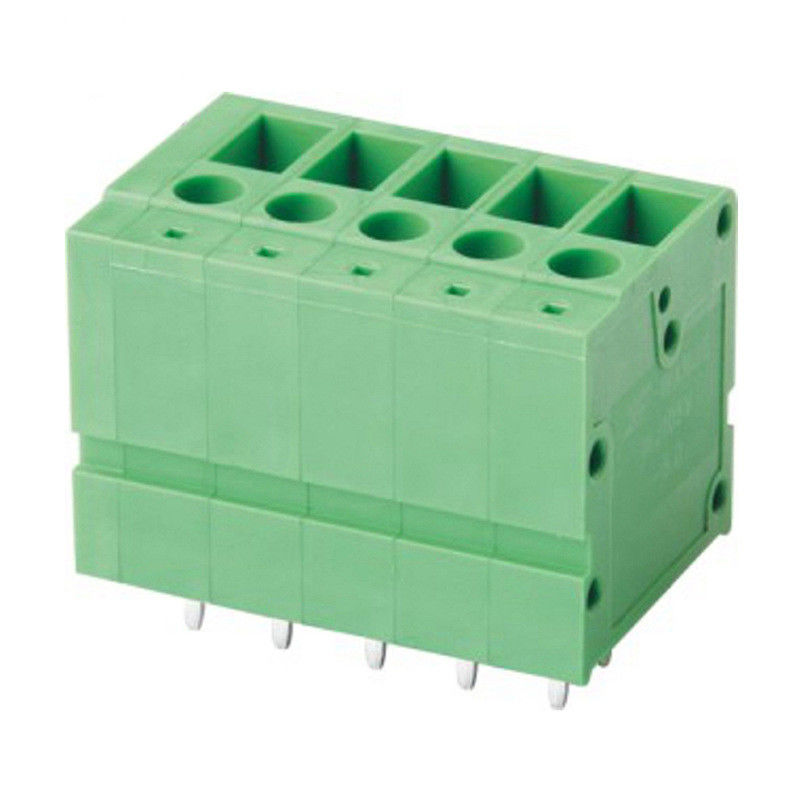

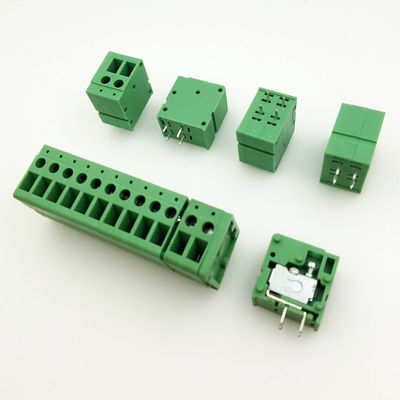

5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination

5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination
5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination 5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination 5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination 5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination 5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination 5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination

Large Image :  5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination

Product Details:

Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE,UL
Model Number: KF280VR-5.00

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: US $0.49
Packaging Details: Standard Export Carton
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Detailed Product Description
Material: PA66 Pitch: 5.00mm
Color: Green

Condition: Brand New
Certification: CE, Rohs
Pitch: 7.50mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG
5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination 0
5.00mm / 7.50mm Pitch PCB Mounted Screw Terminal Blocks Combination 1
