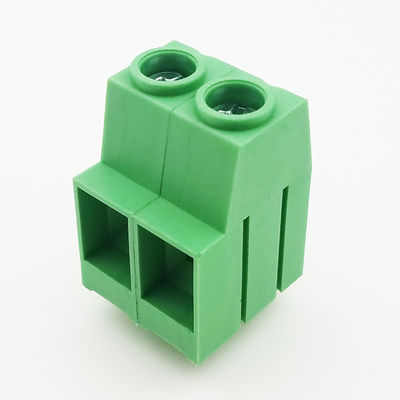

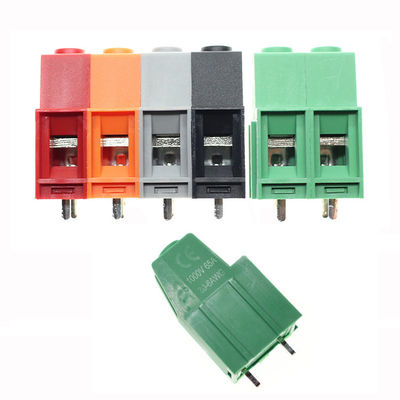

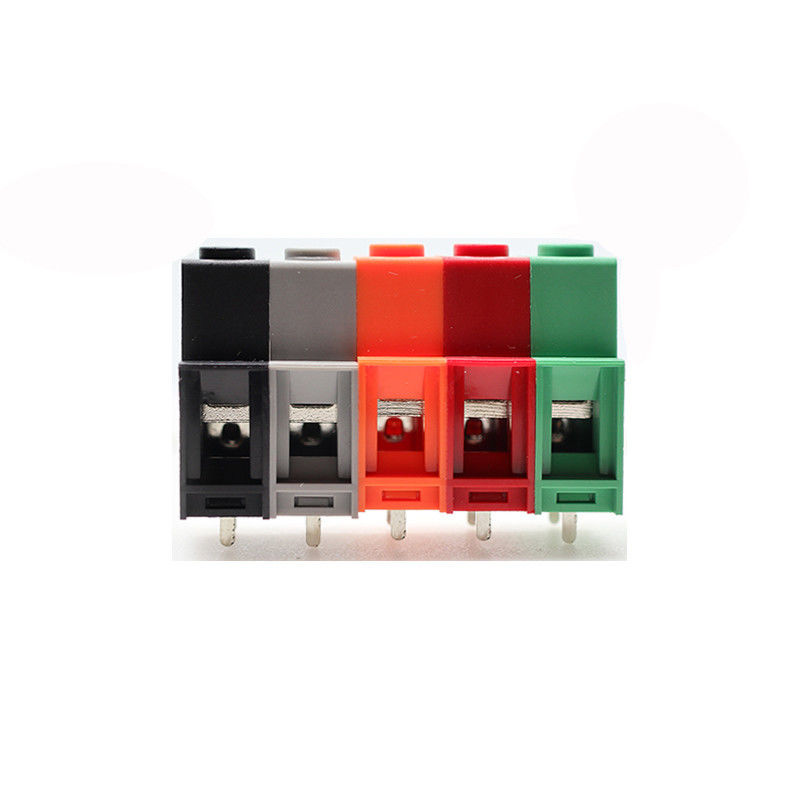

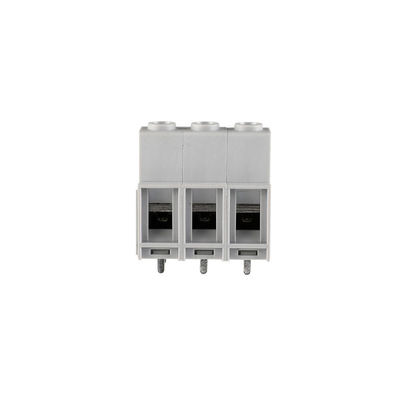

10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable

10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable
10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable 10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable 10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable 10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable 10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable

Large Image :  10.16mm Pitch 1000V 65A PCB Screw Terminal Blocks Connector Jointable

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: HT-10.16

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Number Of Contacts: 2 - 20 Conductor Size: 6 - 26 AWG
Type: Screw

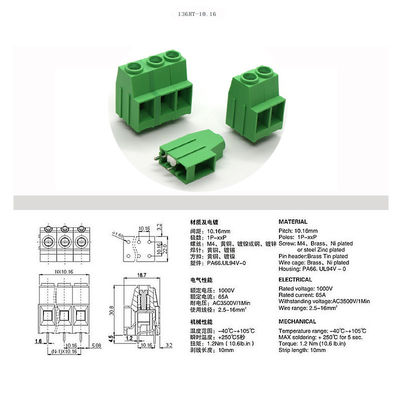

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 10.16mm
Poles: 3 Pins or 2 Pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 1000V IEC
Rated current: 65A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 6 ~ 26 AWG



Note: The terminal blocks are in stock  from 2 poles to 20 poles
