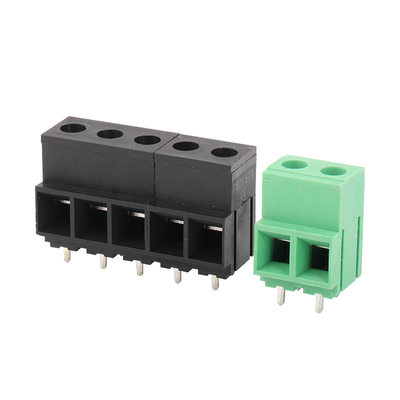

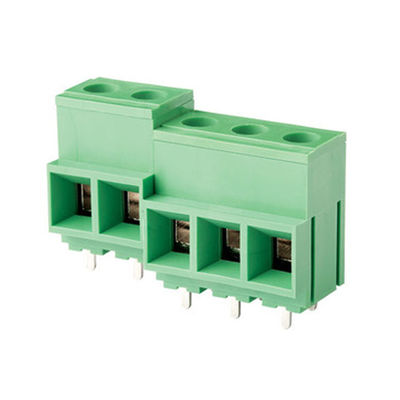

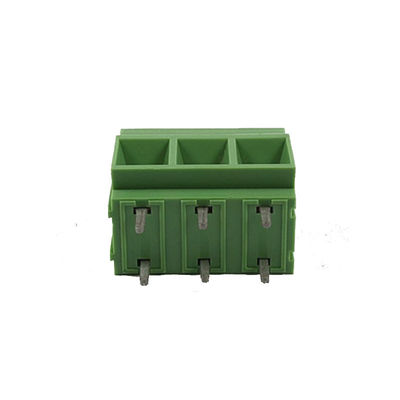

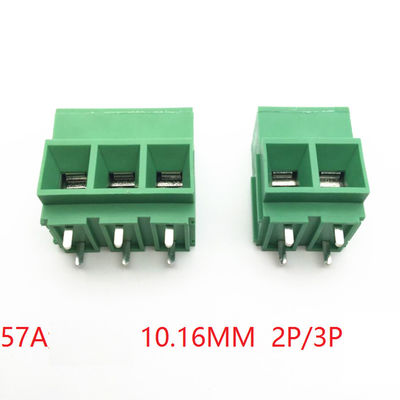

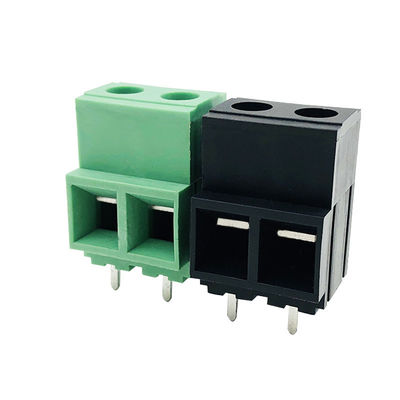

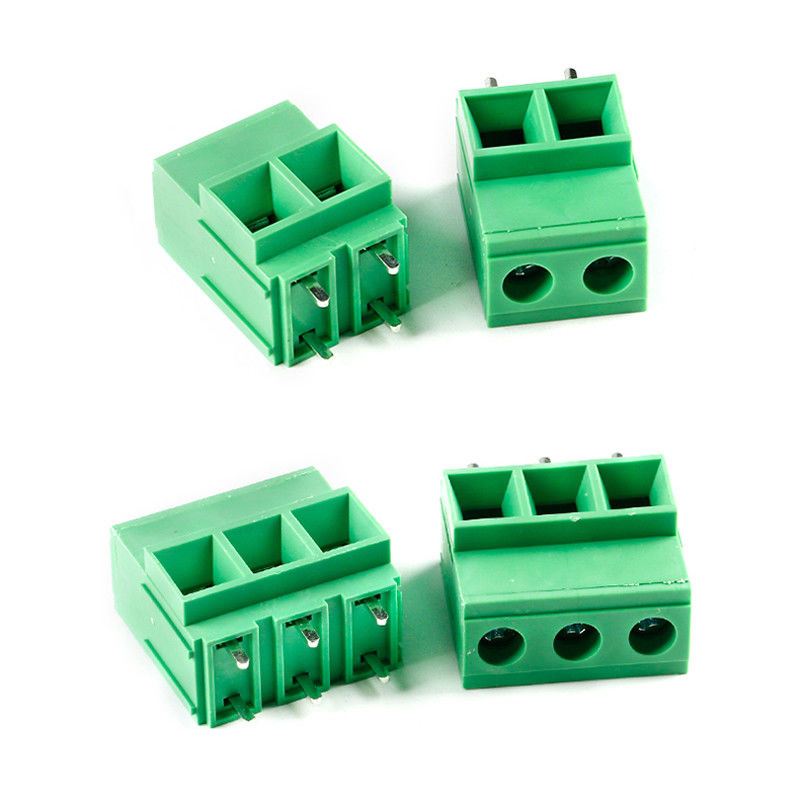

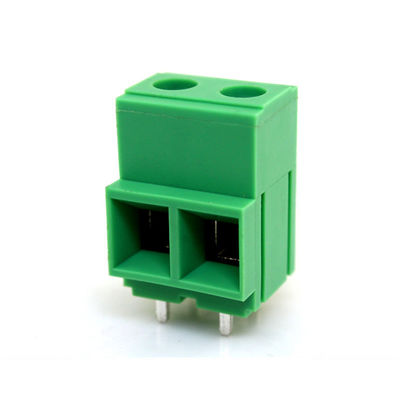

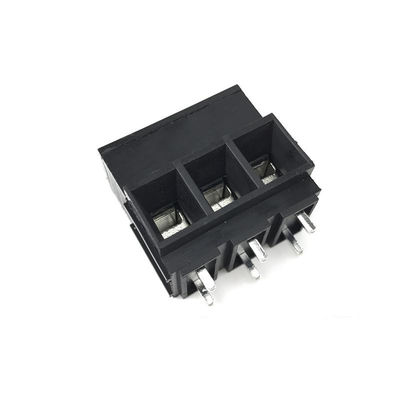

10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A

10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A
10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A 10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A 10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A 10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A 10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A 10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A 10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A 10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A

Large Image :  10.16mm / 0.25" Screw Terminal Blocks PCB Board Connectors 300V 57A

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: KF135T-10.16mm

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 2 - 20 Conductor Size: 11 - 20 AWG
Type: Screw

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 10.16mm
Poles: 3 Pins or 2 Pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 57A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~12AWG



Note:

The terminal blocks are in stock  from 2 poles to 20 poles
