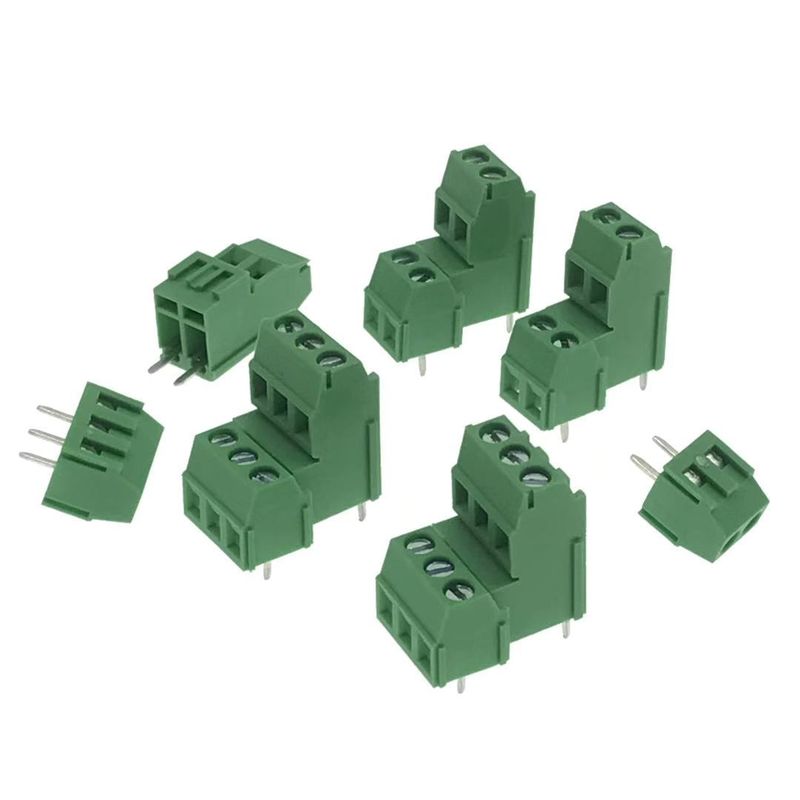

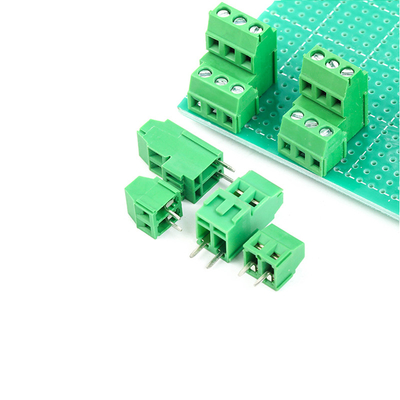

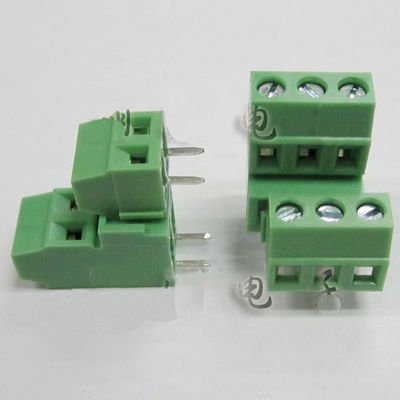

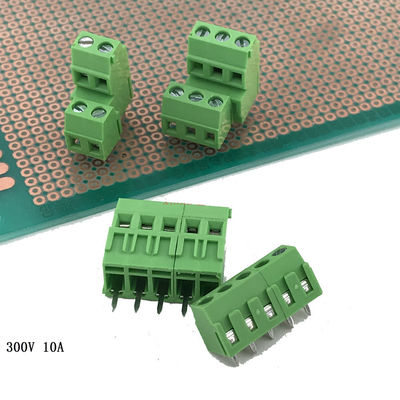

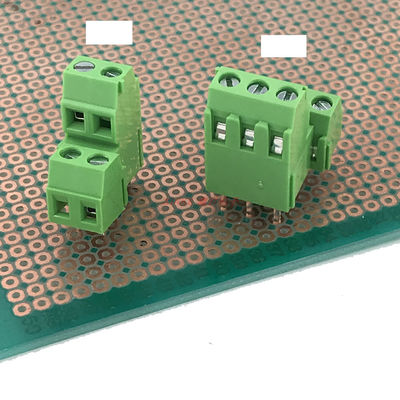

3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector

3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector
3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector 3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector 3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector 3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector 3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector 3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector

Large Image :  3.81mm / 0.15" Dual Row PCB Screw Terminal Blocks Connector

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: EC201-02-3.81

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 3.81mm
Poles: 3 Pins or 2 Pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~12AWG


Note:

The terminal blocks are in stock  from 2 poles to 24 poles
