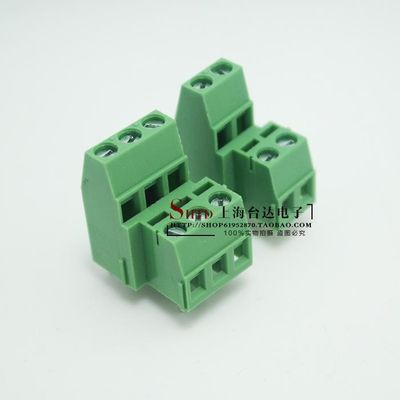

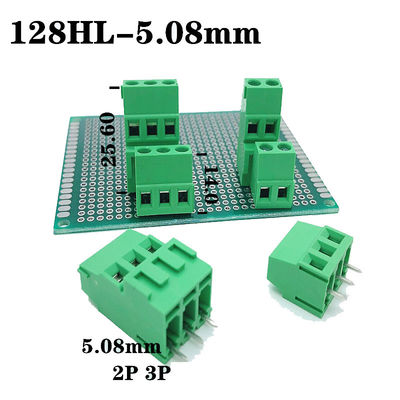

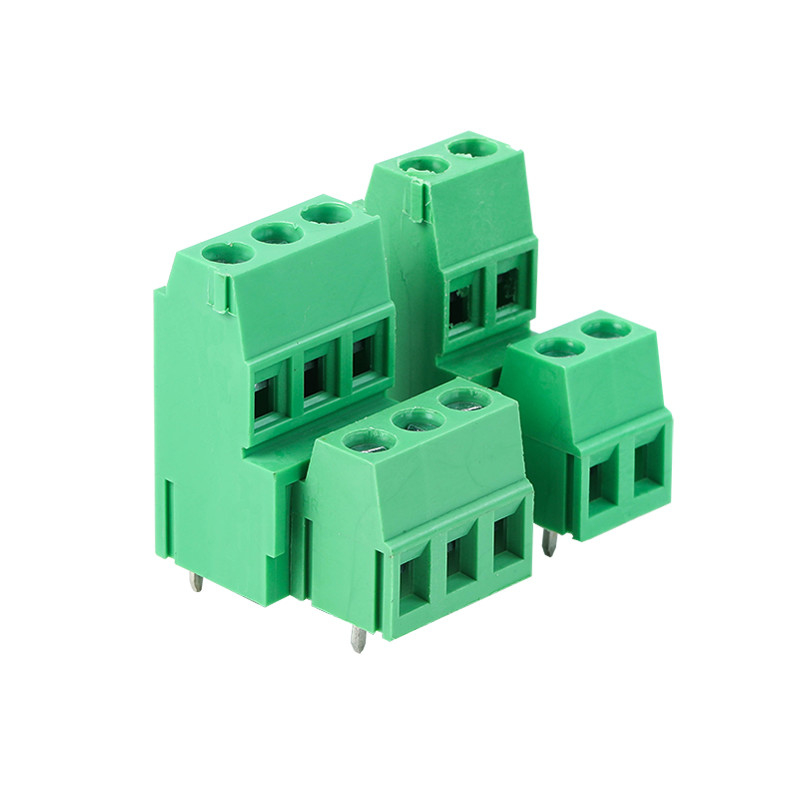

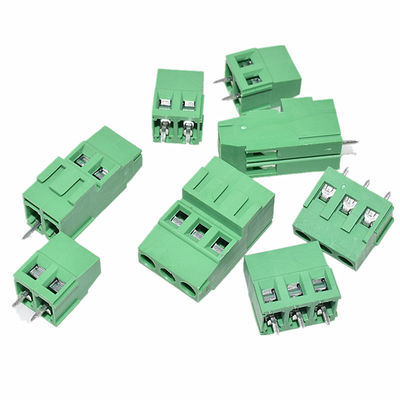

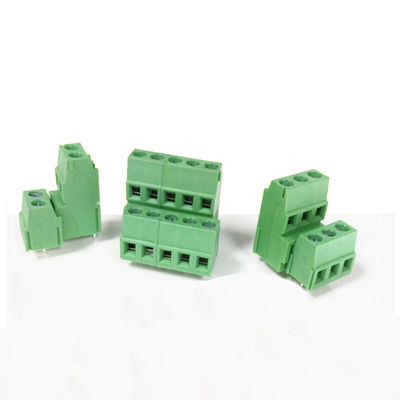

5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector

5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector
5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector 5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector 5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector 5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector 5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector

Large Image :  5.08mm / 0.2" Dual Row PCB Mount Screw Terminal Block Connector

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: KF128HL-5.08MM

Payment & Shipping Terms:

Minimum Order Quantity: 200 Pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Pitch: 5.08mm Or 5.00mm Grounding: Non-Grounding
Application: Industrial

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 22~14AWG


Note:

The terminal blocks are in stock  from 2 poles to 24 poles
