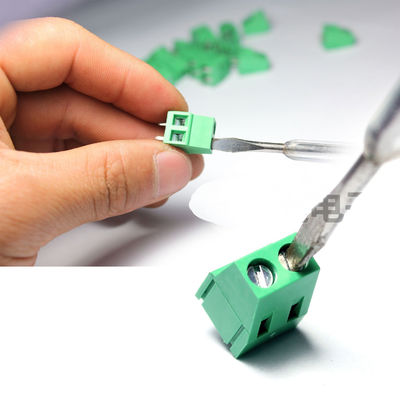

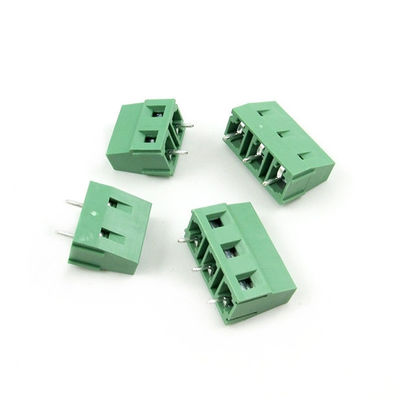

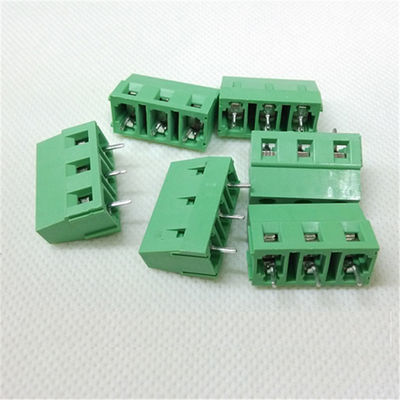

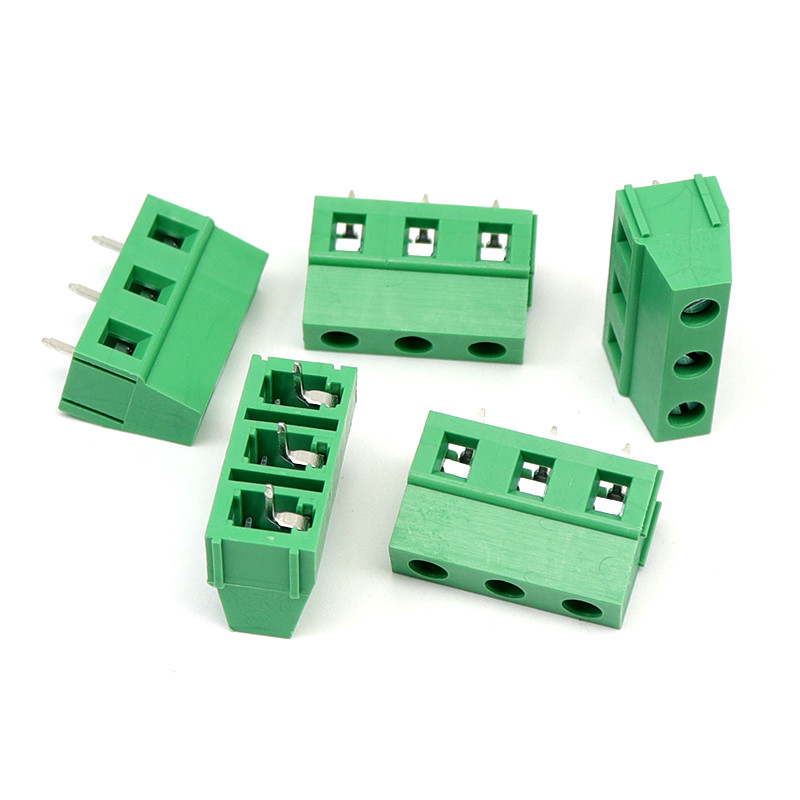

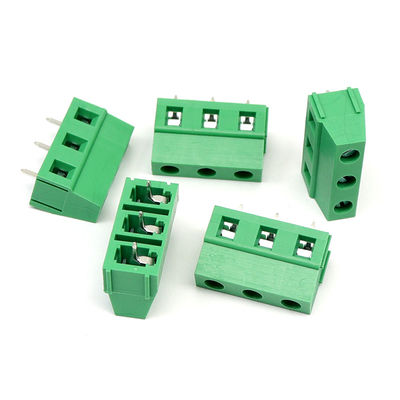

7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable

7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable
7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable 7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable 7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable 7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable 7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable 7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable

Large Image :  7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: KF128-02-7.50

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 11 - 20 Conductor Size: 11 - 20 AWG
Type: Screw Terminals

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 7.50mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG


Note:

The terminal blocks are in stock  from 2 poles to 20 poles
7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable 0

7.50mm Pitch PCB Mounted Screw Terminal Blocks 2P 3P Jointable 1
