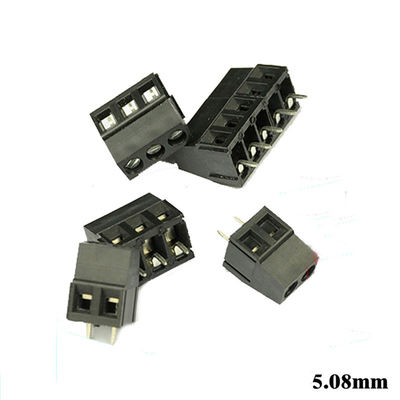

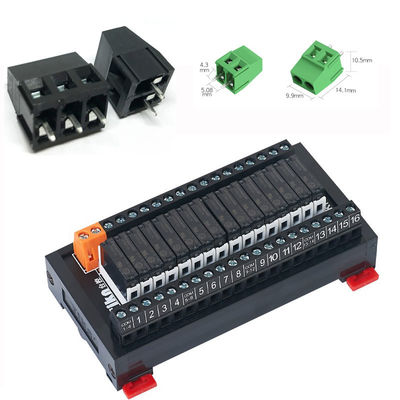

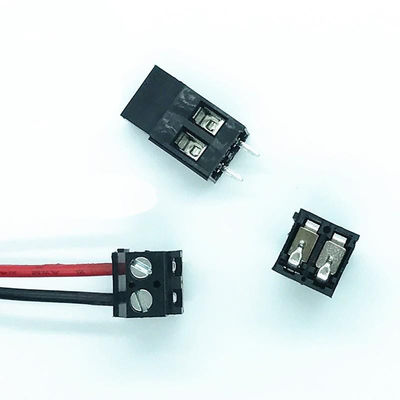

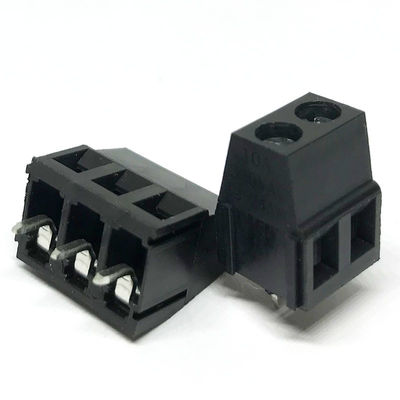

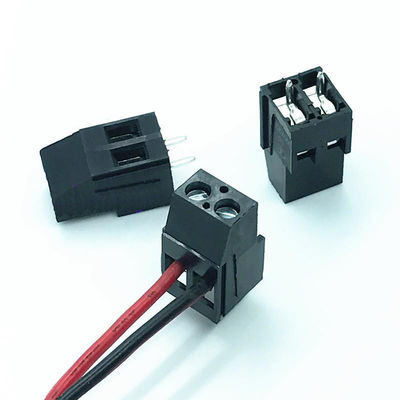

5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black

5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black
5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black 5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black 5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black 5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black 5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black

Large Image :  5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: KF128-02-5.08-Black

Payment & Shipping Terms:

Minimum Order Quantity: 500 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 11 - 20 Conductor Size: 11 - 20 AWG
Type: PCB

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins
Color:Black
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG


Note:

The terminal blocks are in stock  from 2 poles to 20 poles
5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black 0
5.08mm / 0.2" Pitch PCB Mounted Screw Terminal Blocks 2P 3P Combination Black 1
