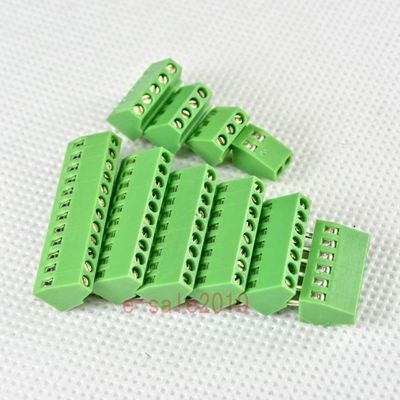

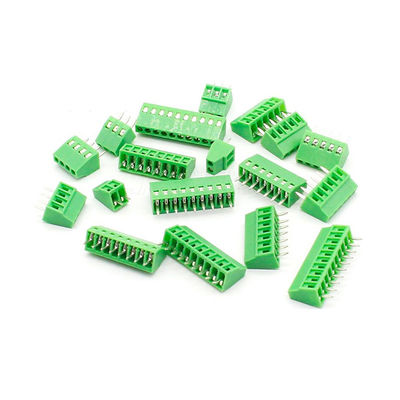

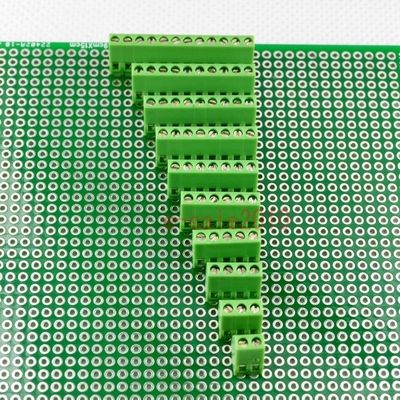

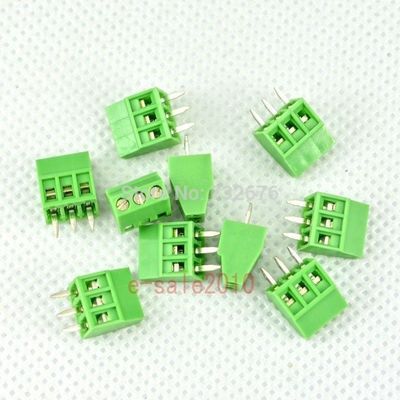

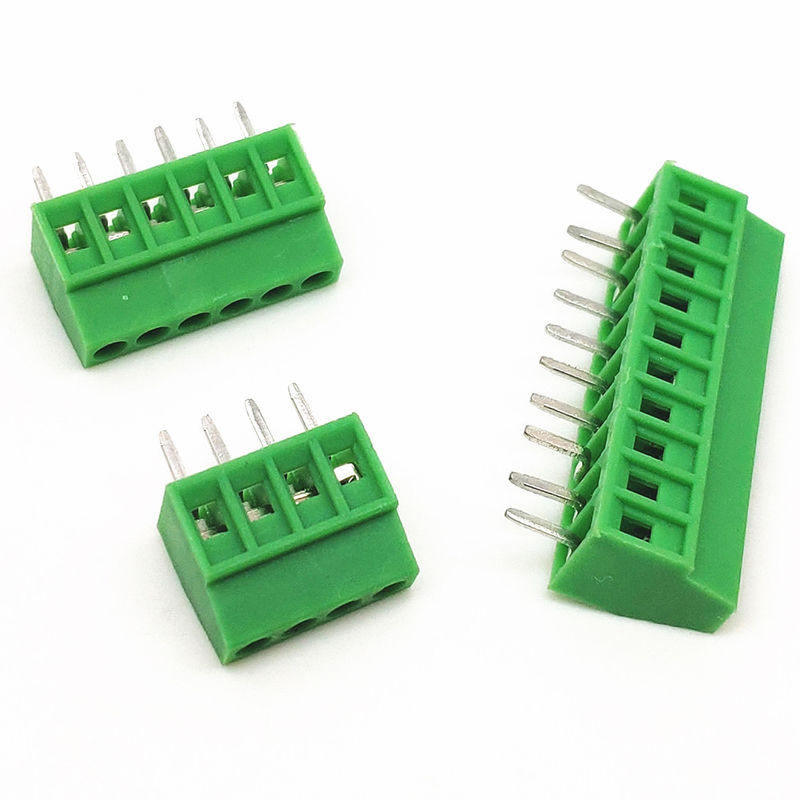

2.54mm Pitch PCB Mounted Screw Terminal Blocks 300V 10A

Large Image : 2.54mm Pitch PCB Mounted Screw Terminal Blocks 300V 10A

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	KF128-02-2.54

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Specifications:

Certification: CE, Rohs

Pitch: 2.54mm

Poles: 2 Pins to 20 pins

Color:Green

Torque: 0.2Nm

Strip length: 5-6mm

Rated voltage: 300V

Rated current:10A

Insulation resistance: 5000MΩ/1000V

Contact resistance: 20mΩ

Withstanding voltage: 2000V/1min

Wire range: 28~16AWG

Note:

The terminal blocks are in stock from 2 poles to 20 poles
