5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable

5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable
5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable 5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable 5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable 5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable 5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable

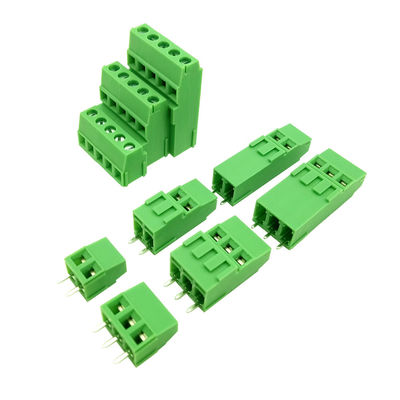

Large Image :  5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable

Product Details:

Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: KF128A3-2P/3P

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: US $0.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 500pcs / per day
Contact Now
Detailed Product Description
Color: Green Pitch: 5.08mm
Current: 10A

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm or 5.00mm
Poles: 2 Pins to 20 pins
Color:Black
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG


Note:

The terminal blocks are in stock from 2 poles to 20 poles

5.08mm / 5.00mm Pitch PCB 3 Row Screw Terminal Blocks 2pin 3pin Jointable 0
