12.7mm / 0.5" PCB Screw Terminal Blocks Connector 750V 57A

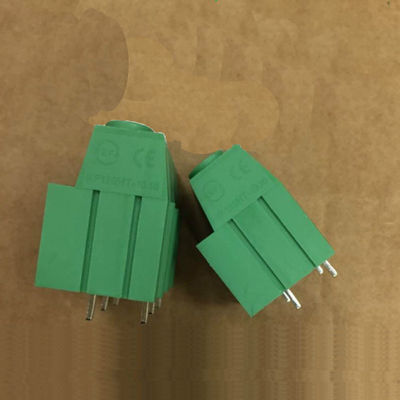

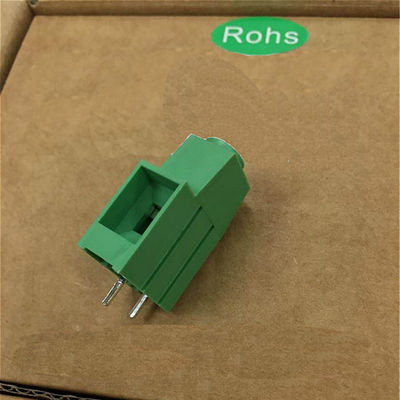

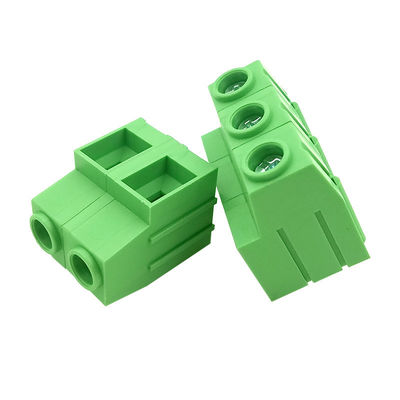

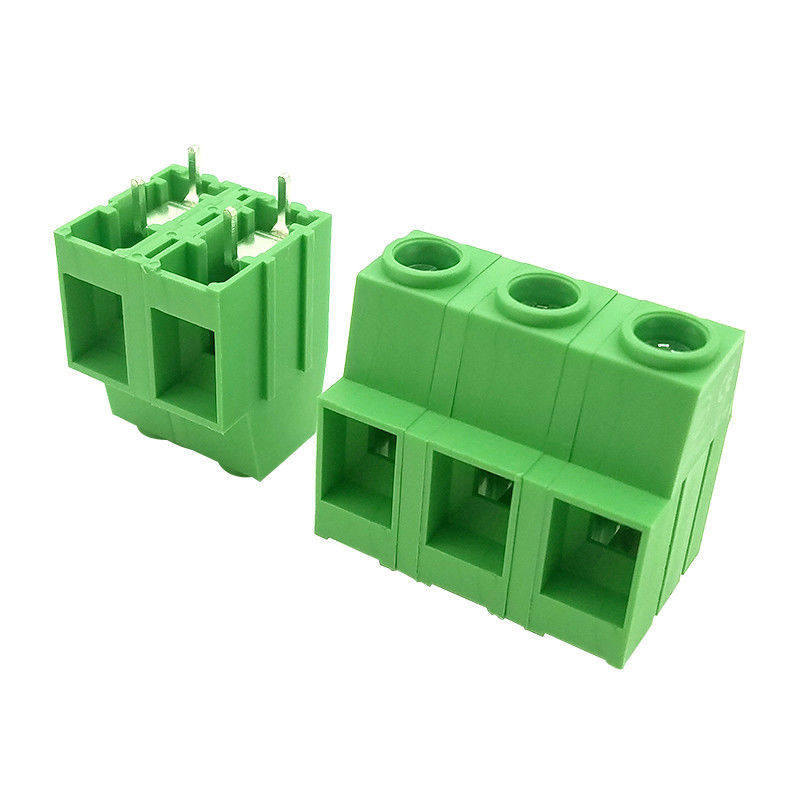

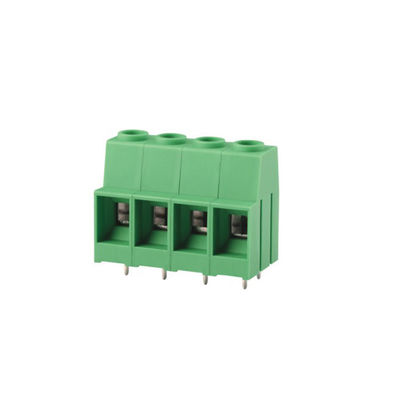

Large Image : 12.7mm / 0.5" PCB Screw Terminal Blocks Connector 750V 57A

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	EC201-02-3.81

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Specifications:

Condition: Brand New

Certification: CE, Rohs

Pitch: 10.16mm

Poles: 3 Pins or 2 Pins

Color:Green

Torque: 0.2Nm

Strip length: 5-6mm

Rated voltage: 750V

Rated current: 57A

Insulation resistance: 5000MΩ/1000V

Contact resistance: 20mΩ

Withstanding voltage: 2000V/1min

Wire range: 28~12AWG

Note:

The terminal blocks are in stock from 2 poles to 20 poles
